Tempering Valve

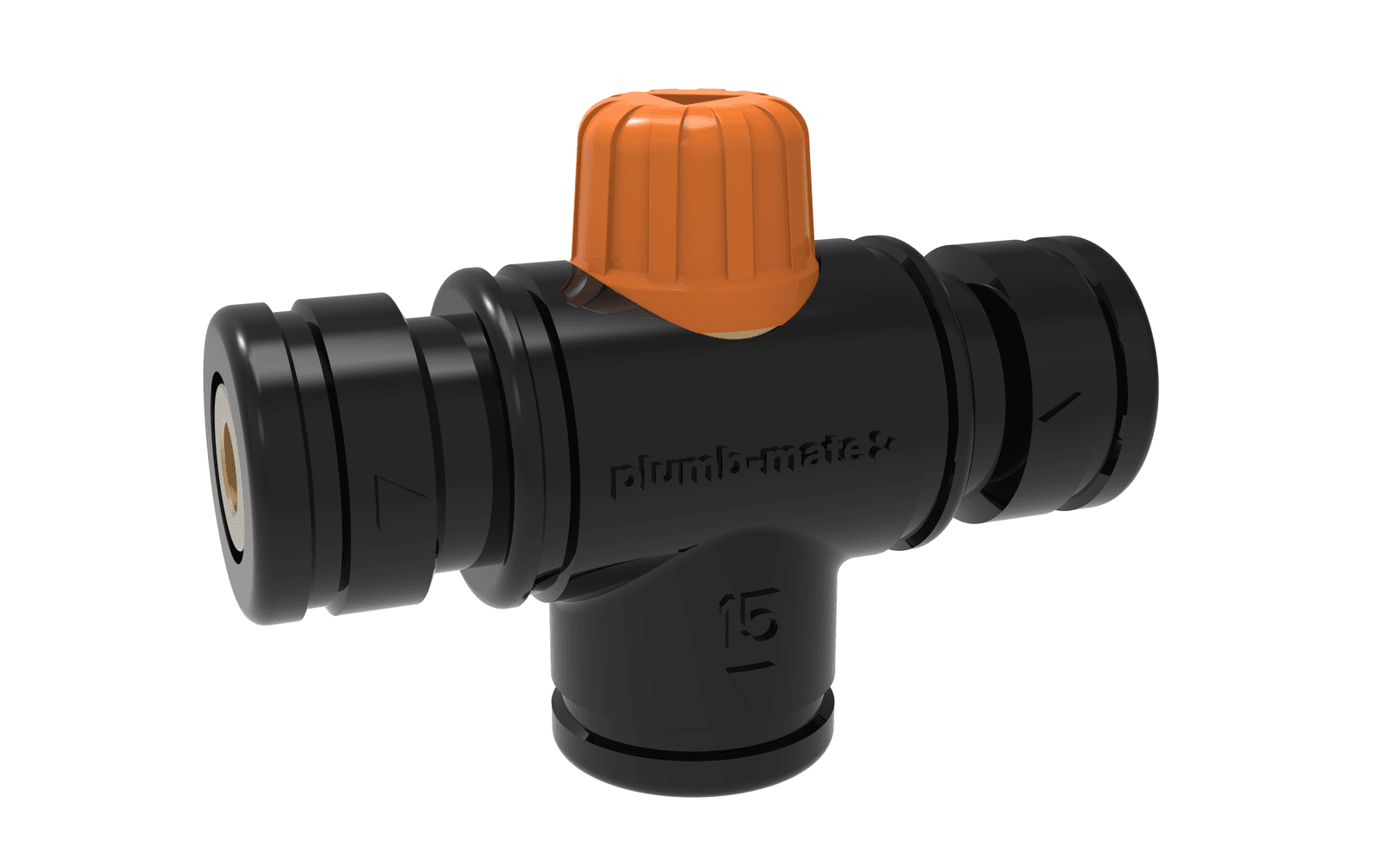

Tempering Valve — High Performance
Orange-cap high-performance tempering for solar, instantaneous, and pumped ring-main systems—same family ratings with extended hot-water supply temperature range.
Key Features
- The plumb-mate tempering valve mixes hot and cold water to deliver tempered water at a constant temperature throughout a building or system
- Ensures safe, constant tempered water to bathrooms and ensuites where outlet temperatures must not exceed 50°C
- Lead-free body — fully compliant with the lead-free requirements of the National Construction Code Volume 3
- Automatic temperature regulation — maintains safe outlet temperatures to help prevent injury or serious burns
- Thermal shut-off protection — if cold water supply is interrupted, the fast-acting thermal shut-off stops flow
- High Performance (Orange Cap): designed for solar hot water systems, instantaneous heaters, and pumped ring main distribution systems
The plumb-mate tempering valve is designed to mix hot and cold water to deliver tempered water at a constant temperature throughout a building or system.
It ensures the delivery of safe, constant tempered water to rooms intended for personal hygiene, such as bathrooms and ensuites, where outlet temperatures must not exceed 50°C.
Product Technical Data
| Specification | PMTV15 | PMTV20 |
|---|---|---|
Inlet connection | 1/2" (15mm) | 3/4" (20mm) |
Cold water supply temperature | 5°C – 25°C | |
Hot water supply temperature (Standard — Yellow Cap) | 65°C – 85°C | |
Hot water supply temperature (High Performance — Orange Cap) | 65°C – 99°C | |
Adjustable outlet temperature | 40°C – 50°C | |
Accuracy of outlet temperature | ±3°C | |
Factory preset temperature | 47°C | |
Minimum temperature differential (between hot water supply & outlet temperature) | 15°C | |
Maximum static supply pressure | 1600 kPa | |
Maximum dynamic supply pressure | 500 kPa | |
Pressure supply imbalance | 2:1 | |
Maximum pressure variation between hot and cold water supply | ±10% | |
Minimum flow rate | 4 litres/min | |
Insulation jacket | Yes | |
- Designed and manufactured to meet AS 4032.2-2005.
- Technical drawings: refer to product sheets for DN15 and DN20 models.
- Watermark licence no. WMK27144.
Dimensions
Dimensions in millimetres. Call-outs A–E are shown on the product drawing.
| Model | Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|
PMTV15 | DN15 | 12.9 | 136 | 55 | 101 | 54 |
PMTV20 | DN20 | 19.25 | 163 | 66 | 103 | 56 |
